Use Rerun with ROS 2

Rerun does not yet have native ROS support, but many of the concepts in ROS and Rerun line up fairly well. In this guide, you will learn how to write a simple ROS 2 Python node that subscribes to some common ROS topics and logs them to Rerun.

For information on future plans to enable more native ROS support see #1537

The following is primarily intended for existing ROS 2 users. It will not spend much time covering how to use ROS 2 itself. If you are a Rerun user that is curious about ROS, please consult the ROS 2 Documentation instead.

All of the code for this guide can be found on GitHub in rerun/examples/python/ros_node.

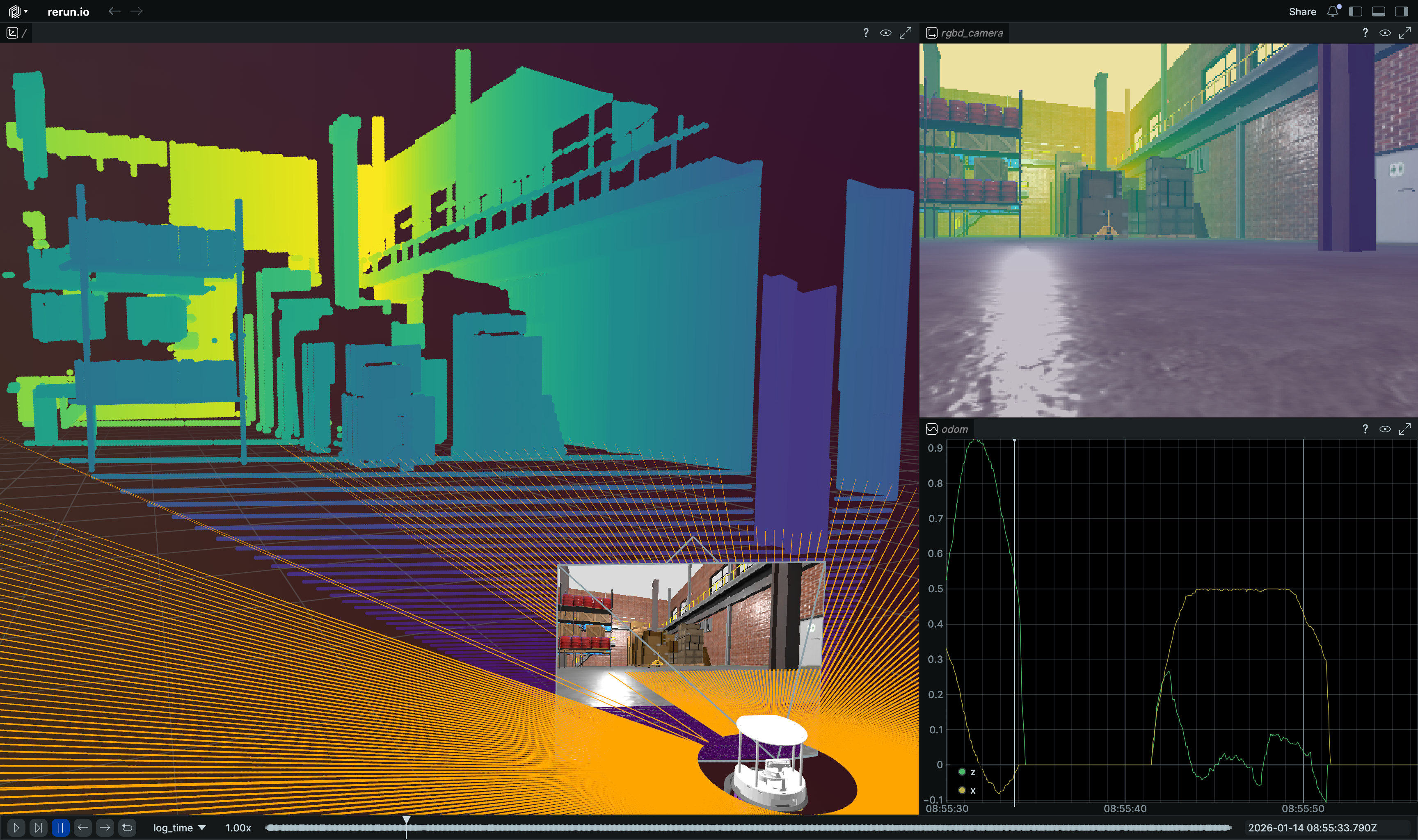

Rerun 3D view of ROS 2 turtlebot3 navigation demo

Prerequisites prerequisites

Additional dependencies additional-dependencies

The code for this guide is in the rerun repository. If you do not already have Rerun cloned, you should do so now:

git clone git@github.com:rerun-io/rerun.git
cd rerun

The example code can be found in the folder: examples/python/ros_node.

In addition to the ROS dependencies, the Rerun node makes use of some dependencies specified in requirements.txt.

Rerun recommends using venv (or the equivalent) to create an environment for installing these dependencies. Note that after setting up your virtualenv you will need to activate your ROS2 environment.

$ python3 -m venv venv
$ source venv/bin/active
(venv) $ pip install -r examples/python/ros_node/requirements.txt
(venv) $ source /opt/ros/humble/setup.bash

Running the example running-the-example

With the previous dependencies installed, and gazebo running, you should now be able to launch the Rerun ROS example:

(venv) $ python3 examples/python/ros_node/main.py

You should see a window similar to:

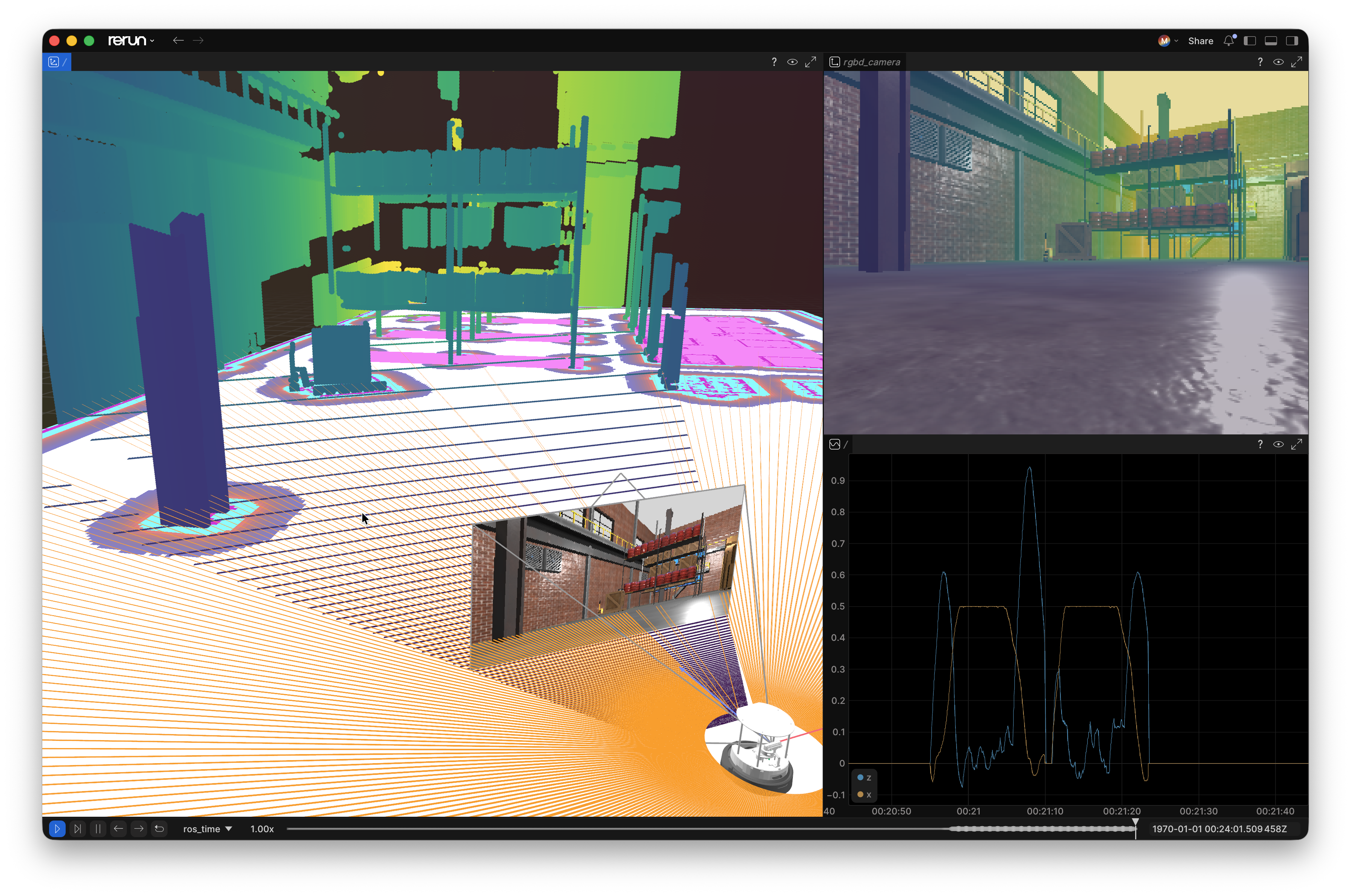

Initial window layout of Rerun 3D view of ROS 2 turtlebot3 navigation demo

Use rviz to send a new navigation goal and confirm that Rerun updates with new data as turtlebot drives around the environment.

Overview overview

If you are familiar with the turtlebot nav example and rviz, this view will likely be familiar:

map/box is a placeholder for the map. (This will eventually be a map: #1531.)
map/robot is a transform representing the robot pose logged as a rigid transform3d.
map/robot/urdf contains the URDF logged as a mesh.
map/robot/scan contains a LaserScan msg logged as a linestrip3d. (This will eventually be a native type: #1534.)
map/robot/camera contains a CameraInfo msg logged as a pinhole transform.
map/robot/camera/img contains an Image msg logged as an image.
map/robot/camera/points contains a PointCloud2 msg logged as a point3d.
map/points contains a second copy of PointCloud2 with a different transform. (This is a workaround until Rerun has support for ROS-style fixed frames #1522.)
odometry/vel is a plot of the linear velocity of the robot logged as a scalar.
odometry/ang_vel is a plot of the angular velocity of the robot logged as a scalar.

Code explanation code-explanation

It may be helpful to open rerun/examples/python/ros_node/main.py to follow along.

Outside of TF, the node is mostly stateless. At a very high level, for each ROS message we are interested in, we create a subscriber with a callback that does some form of data transformation and then logs the data to Rerun.

For simplicity, this example uses the rosclpy MultiThreadedExecutor and ReentrantCallbackGroup for each topic. This allows each callback thread to do TF lookups without blocking the other incoming messages. More advanced ROS execution models and using asynchronous TF lookups are outside the scope of this guide.

Updating time updating-time

First of all, we want our messages to show up on the timeline based on their stamped time rather than the time that they were received by the listener, or relayed to Rerun.

To do this, we will use a Rerun timeline called ros_time.

Each callback follows a common pattern of updating ros_time based on the stamped time of the message that was received.

def some_msg_callback(self, msg: Msg):
    time = Time.from_msg(msg.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

This timestamp will apply to all subsequent log calls on in this callback (on this thread) until the time is updated again.

TF to rr.Transform3D tf-to-rrtransform3d

Next, we need to map the ROS TF2 transforms to the corresponding Rerun Transforms.

In Rerun, each path represents a coordinate frame, so we need to decide which TF frame each path will correspond to. In general, this is the frame_id of the sensor data that will be logged to that path. For consistency, we define this once in __init__().

# Define a mapping for transforms
self.path_to_frame = {
    "map": "map",
    "map/points": "camera_depth_frame",
    "map/robot": "base_footprint",
    "map/robot/scan": "base_scan",
    "map/robot/camera": "camera_rgb_optical_frame",
    "map/robot/camera/points": "camera_depth_frame",
}

Because we have chosen a Rerun path hierarchy that does not exactly match the TF graph topology the values for the transforms at these paths need to be derived using TF on the client logging side at log-time. In the future, Rerun will support deriving these values in the viewer (see: #1533 for more details), allowing all of this code to go away.

For now, on each incoming log message, we want to use the mapping to update the transform at the timestamp in question:

def log_tf_as_transform3d(self, path: str, time: Time) -> None:
    """Helper to look up a transform with tf and log using `log_transform3d`."""
    # Get the parent path
    parent_path = path.rsplit("/", 1)[0]

    # Find the corresponding frames from the mapping
    child_frame = self.path_to_frame[path]
    parent_frame = self.path_to_frame[parent_path]

    # Do the TF lookup to get transform from child (source) -> parent (target)
    try:
        tf = self.tf_buffer.lookup_transform(parent_frame, child_frame, time, timeout=Duration(seconds=0.1))
        t = tf.transform.translation
        q = tf.transform.rotation
        rr.log(path, rr.Transform3D(translation=[t.x, t.y, t.z], rotation=rr.Quaternion(xyzw=[q.x, q.y, q.z, q.w])))
    except TransformException as ex:
        print(f"Failed to get transform: {ex}")

As an example of logging points in the map frame, we simply call:

rr.log("map/points", rr.Points3D(positions=pts, colors=colors))
self.log_tf_as_transform3d("map/points", time)

Note that because we previously called set_time_nanos in this callback, this transform will be logged to the same point on the timeline as the data, using a timestamp looked up from TF at the matching timepoint.

Odometry to rr.Scalar and rr.Transform3D odometry-to-rrscalar-and-rrtransform3d

When receiving odometry messages, we log the linear and angular velocities using rr.Scalar. Additionally, since we know that odometry will also update the map/robot transform, we use this as a cue to look up the corresponding transform and log it.

def odom_callback(self, odom: Odometry) -> None:
    """Update transforms when odom is updated."""
    time = Time.from_msg(odom.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

    # Capture time-series data for the linear and angular velocities
    rr.log("odometry/vel", rr.Scalar(odom.twist.twist.linear.x))
    rr.log("odometry/ang_vel", rr.Scalar(odom.twist.twist.angular.z))

    # Update the robot pose itself via TF
    self.log_tf_as_transform3d("map/robot", time)

CameraInfo to rr.Pinhole camerainfo-to-rrpinhole

Not all Transforms are rigid as defined in TF. The other transform we want to log is the pinhole projection that is stored in the CameraInfo msg.

Fortunately, the image_geometry package has a PinholeCameraModel that exposes the intrinsic matrix in the same structure used by Rerun rr.Pinhole:

def __init__(self) -> None:
    # …
    self.model = PinholeCameraModel()

def cam_info_callback(self, info: CameraInfo) -> None:
    """Log a `CameraInfo` with `log_pinhole`."""
    time = Time.from_msg(info.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

    self.model.fromCameraInfo(info)

    rr.log(
        "map/robot/camera/img",
        rr.Pinhole(
            resolution=[self.model.width, self.model.height],
            image_from_camera=self.model.intrinsicMatrix(),
        ),
    )

Image to rr.Image image-to-rrimage

ROS Images can also be mapped to Rerun very easily, using the cv_bridge package. The output of cv_bridge.imgmsg_to_cv2 can be fed directly into rr.Image:

def __init__(self) -> None:
    # …
    self.cv_bridge = cv_bridge.CvBridge()

def image_callback(self, img: Image) -> None:
    """Log an `Image` with `log_image` using `cv_bridge`."""
    time = Time.from_msg(img.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

    rr.log("map/robot/camera/img", rr.Image(self.cv_bridge.imgmsg_to_cv2(img)))
    self.log_tf_as_transform3d("map/robot/camera", time)

PointCloud2 to rr.Points3D pointcloud2-to-rrpoints3d

The ROS PointCloud2 message is stored as a binary blob that needs to be reinterpreted using the details about its fields. Each field is a named collection of offsets into the data buffer, and datatypes. The sensor_msgs_py package includes a point_cloud2 reader, which can be used to convert to a Rerun-compatible Numpy array.

These fields are initially returned as Numpy structured arrays, whereas Rerun currently expects an unstructured array of Nx3 floats.

Color is extracted in a similar way, although the realsense gazebo driver does not provide the correct offsets for the r,g,b channels, requiring us to patch the field values.

After extracting the positions and colors as Numpy arrays, the entire cloud can be logged as a batch with rr.Points3D

def points_callback(self, points: PointCloud2) -> None:
    """Log a `PointCloud2` with `log_points`."""
    time = Time.from_msg(points.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

    pts = point_cloud2.read_points(points, field_names=["x", "y", "z"],
                                   skip_nans=True)

    # The realsense driver exposes a float field called 'rgb', but the data is
    # actually stored as bytes within the payload (not a float at all). Patch
    # points.field to use the correct r,g,b, offsets so we can extract them with
    # read_points.
    points.fields = [
        PointField(name="r", offset=16, datatype=PointField.UINT8, count=1),
        PointField(name="g", offset=17, datatype=PointField.UINT8, count=1),
        PointField(name="b", offset=18, datatype=PointField.UINT8, count=1),
    ]

    colors = point_cloud2.read_points(points, field_names=["r", "g", "b"],
                                      skip_nans=True)

    pts = structured_to_unstructured(pts)
    colors = colors = structured_to_unstructured(colors)

    # Log points once rigidly under robot/camera/points. This is a robot-centric
    # view of the world.
    rr.log("map/robot/camera/points", rr.Points3D(pts, colors=colors))
    self.log_tf_as_transform3d("map/robot/camera/points", time)

LaserScan to rr.LineStrips3D laserscan-to-rrlinestrips3d

Rerun does not yet have native support for a LaserScan style primitive so we need to do a bit of additional transformation logic (see: #1534.)

First, we convert the scan into a point-cloud using the laser_geometry package. After converting to a point-cloud, we extract the pts just as above with PointCloud2.

We could have logged the Points directly using rr.Points3D, but for the sake of this demo, we wanted to instead log a laser scan as a bunch of lines in a similar fashion to how it is depicted in gazebo.

We generate a second matching set of points for each ray projected out 0.3m from the origin and then interlace the two sets of points using Numpy hstack and reshape. This results in a set of alternating points defining rays from the origin to each laser scan result, which is the format expected by rr.LineStrips3D:

def __init__(self) -> None:
    # …
    self.laser_proj = laser_geometry.laser_geometry.LaserProjection()

def scan_callback(self, scan: LaserScan) -> None:
    """Log a LaserScan after transforming it to line-segments."""
    time = Time.from_msg(scan.header.stamp)
    rr.set_time_nanos("ros_time", time.nanoseconds)

    # Project the laser scan to a collection of points
    points = self.laser_proj.projectLaser(scan)
    pts = point_cloud2.read_points(points, field_names=["x", "y", "z"], skip_nans=True)
    pts = structured_to_unstructured(pts)

    # Turn every pt into a line-segment from the origin to the point.
    origin = (pts / np.linalg.norm(pts, axis=1).reshape(-1, 1)) * 0.3
    segs = np.hstack([origin, pts]).reshape(pts.shape[0] * 2, 3)

    rr.log("map/robot/scan", rr.LineStrips3D(segs, radii=0.0025))
    self.log_tf_as_transform3d("map/robot/scan", time)

URDF to rr.Mesh3D urdf-to-rrmesh3d

The URDF conversion is actually the most complex operation in this example. As such the functionality is split out into a separate rerun/examples/python/ros_node/rerun_urdf.py helper.

Loading the URDF from the /robot_description topic is relatively straightforward since we use yourdfpy library to do the heavy lifting. The main complication is that the actual mesh resources in that URDF need to be located via ament. Fortunately, yourdfpy accepts a filename handler, which we shim together with ament get_package_share_directory.

def ament_locate_package(fname: str) -> str:
    """Helper to locate urdf resources via ament."""
    if not fname.startswith("package://"):
        return fname
    parsed = urlparse(fname)
    return os.path.join(get_package_share_directory(parsed.netloc),
                        parsed.path[1:])


def load_urdf_from_msg(msg: String) -> URDF:
    """Load a URDF file using `yourdfpy` and find resources via ament."""
    f = io.StringIO(msg.data)
    return URDF.load(f, filename_handler=ament_locate_package)

We then use rerun_urdf.load_urdf_from_msg from the URDF subscription callback.

Note that when developing this guide, we noticed that the camera mesh URDF was not having its scale applied to it. This seems like a bug in either yourdfpy or pycollada not respecting the scale hint. To accommodate this, we manually re-scale the camera link.

Once we have correctly re-scaled the camera component, we can send the whole scene to Rerun with rerun_urdf.log_scene.

def urdf_callback(self, urdf_msg: String) -> None:
    """Log a URDF using `log_scene` from `rerun_urdf`."""
    urdf = load_urdf_from_msg(urdf_msg)

    # The turtlebot URDF appears to have scale set incorrectly for the
    # camera_link. Although rviz loads it properly `yourdfpy` does not.
    orig, _ = urdf.scene.graph.get("camera_link")
    scale = trimesh.transformations.scale_matrix(0.00254)
    urdf.scene.graph.update(frame_to="camera_link", matrix=orig.dot(scale))
    scaled = urdf.scene.scaled(1.0)

    rerun_urdf.log_scene(scene=scaled,
                         node=urdf.base_link,
                         path="map/robot/urdf",
                         static=True)

Back in rerun_urdf.log_scene all the code is doing is recursively walking through the trimesh scene graph. For each node, it extracts the transform to the parent, which it logs via rr.Transform3D before then using rr.Mesh3D to send the vertices, indices, and normals from the trimesh geometry. This code is almost entirely URDF-independent and is a good candidate for a future Python API (#1536.)

node_data = scene.graph.get(frame_to=node, frame_from=parent)

if node_data:
    # Log the transform between this node and its direct parent (if it has one!).
    if parent:
        world_from_mesh = node_data[0]
        rr.log(
            path,
            rr.Transform3D(
                translation=world_from_mesh[3, 0:3],
                mat3x3=world_from_mesh[0:3, 0:3],
            ),
            timeless=timeless,
        )


    # Log this node's mesh, if it has one.
    mesh = cast(trimesh.Trimesh, scene.geometry.get(node_data[1]))
    if mesh:
        # … extract some color information
        rr.log(
            path,
            rr.Mesh3D(
                vertex_positions=mesh.vertices,
                triangle_indices=mesh.faces,
                vertex_normals=mesh.vertex_normals,
                albedo_factor=albedo_factor,
            ),
            timeless=timeless,
        )

Color data is also extracted from the trimesh, but omitted here for brevity.

In summary in-summary

Although there is a non-trivial amount of code, none of it is overly complicated. Each message callback operates independently of the others, processing an incoming message, adapting it to Rerun and then logging it again.

There are several places where Rerun is currently missing support for primitives that will further simplify this implementation. We will continue to update this guide as new functionality becomes available.

While this guide has only covered a small fraction of the possible ROS messages that could be sent to Rerun, hopefully, it has given you some tools to apply to your project.

If you find that specific functionality is lacking for your use case, please provide more context in the existing issues or open an new one on GitHub.
