What are Blueprints? what-are-blueprints

When you work with the Rerun Viewer, understanding blueprints is important if you want to build consistency around your Viewer experience.

For a video overview, check out the Blueprints video on YouTube.

A way to think about the Rerun View is that

  • The recording provides the actual data you are visualizing
  • The blueprint determines how that data is displayed

Both pieces are crucial. Without a recording there is nothing to show. Without a blueprint there is no way to show it. Even when you use Rerun without explicitly loading a blueprint, the Viewer creates one automatically for you.

What blueprints control what-blueprints-control

Blueprints give you complete control over the Viewer's layout and configuration:

  • Panel visibility: Whether panels like the blueprint panel, selection panel, and time panel are expanded or collapsed
  • Layout structure: How views are arranged using containers (Grid, Horizontal, Vertical, Tabs)
  • View types and configuration: What kind of views display your data (2D/3D spatial, maps, charts, text logs, etc.) and their specific settings
  • Visual properties: Styling like backgrounds, colors, zoom levels, time ranges, and visual bounds

In general, if you can modify an aspect of how something looks through the Viewer, you are actually modifying the blueprint.

Application IDs: binding blueprints to data application-ids-binding-blueprints-to-data

The Application ID is how blueprints connect to your data. This is a critical concept:

All recordings that share the same Application ID will use the same blueprint.

This loose coupling between blueprints and recordings means:

  • You can keep the blueprint constant while changing the recording to compare different datasets with consistent views
  • You can change the blueprint while keeping a recording constant to view the same data in different ways
  • When you save blueprint changes with the Viewer, those changes apply to all recordings with that Application ID

Think of the Application ID as the "key" that binds a blueprint to a specific type of recording. If you want recordings to share the same layout, give them the same Application ID.

Reset behavior: heuristic vs default reset-behavior-heuristic-vs-default

The Viewer provides two types of blueprint reset, accessible from the blueprint panel:

Reset to heuristic blueprint reset-to-heuristic-blueprint

This generates a new blueprint automatically based on your current data. The Viewer analyzes what you've logged and creates an appropriate layout using built-in heuristics. This is useful when you want to start fresh and let Rerun figure out a reasonable layout.

Reset to default blueprint reset-to-default-blueprint

This returns to your programmatically specified blueprint (sent from code) or a saved blueprint file (.rbl). If you've sent a blueprint using rr.send_blueprint() or loaded a .rbl file, this becomes your "default." The reset button in the blueprint panel will restore this default whenever you need it.

When no default blueprint has been set, the reset button will use the heuristic blueprint instead.

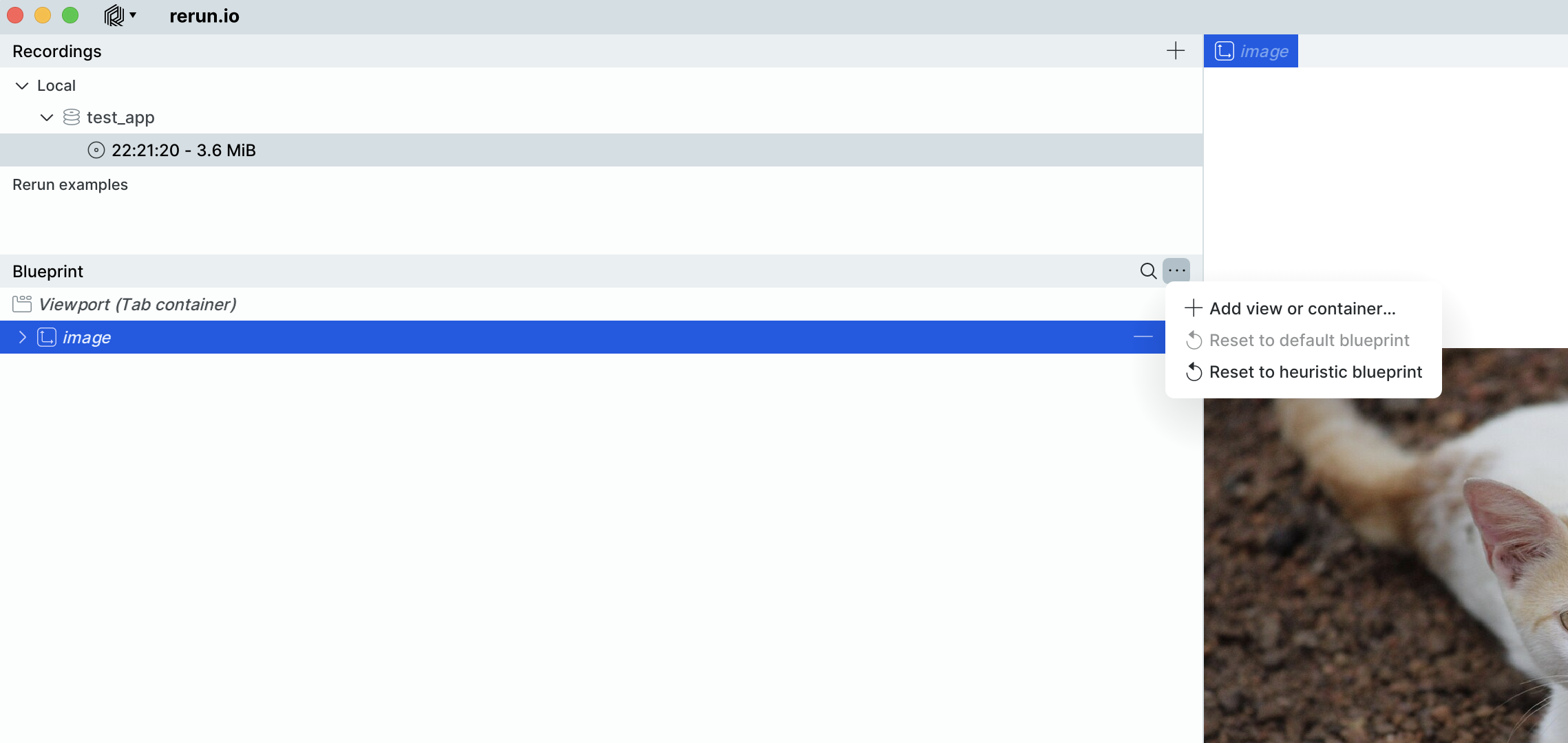

Current, default, and heuristic blueprints

Three ways to work with blueprints three-ways-to-work-with-blueprints

There are three complementary approaches to creating and modifying blueprints:

1. Interactively 1-interactively

Modify blueprints directly in the Viewer UI:

  • Drag and drop views to rearrange them
  • Add new views or containers with the "+" button
  • Split views horizontally, vertically, or into grids
  • Change container types (Grid, Horizontal, Vertical, Tabs)
  • Rename views and containers
  • Show, hide, or remove elements

This is the fastest way to experiment with layouts. See Configure the Viewer for a complete guide.

2. Save and load files 2-save-and-load-files

Save your blueprint configuration to .rbl files:

  • Use "Save blueprint…" from the file menu to save your current layout
  • Load blueprints with "Open…" or by dragging .rbl files into the Viewer
  • Share blueprint files with teammates to ensure everyone sees data the same way
  • Reuse blueprints across sessions and different recordings (with the same Application ID)

Blueprint files are portable and can be version-controlled alongside your code.

3. Programmatically 3-programmatically

Write blueprint code that configures the Viewer automatically:

  • Define layouts in Python using rerun.blueprint APIs
  • Send blueprints with rr.send_blueprint() or via default_blueprint parameter
  • Generate layouts dynamically based on your data
  • Perfect for creating consistent views for specific debugging scenarios

For example, you might send different blueprints automatically based on detected issues in your application (e.g., a robot enters an error state and surfaces the correct blueprint to help you debug that)

import rerun as rr
import rerun.blueprint as rrb

if robot_error:
    # Show diagnostic views for debugging
    blueprint = rrb.Grid(
        rrb.Spatial3DView(name="Robot view", origin="/world/robot"),
        rrb.TextLogView(name="Error Logs", origin="/diagnostics"),
        rrb.TimeSeriesView(name="Sensor Data", origin="/sensors"),
    )
    rr.send_blueprint(blueprint, make_active=True)

See Configure the Viewer for detailed examples.

Common use cases common-use-cases

Debugging specific scenarios debugging-specific-scenarios

Create blueprints optimized for diagnosing particular issues. For example, when debugging robot perception, you might want a blueprint that shows:

  • The camera view in 2D
  • The 3D world with detected objects
  • Detection confidence scores in a time series chart
  • Error logs in a text panel

Sharing layouts with teams sharing-layouts-with-teams

Save a blueprint file and share it with your team. Everyone loading that blueprint with matching recordings will see the data the same way, making it easier to discuss findings and collaborate.

Templating for different data types templating-for-different-data-types

Create different blueprint templates for different types of recordings. For example:

  • A blueprint for autonomous vehicle data that focuses on map views and sensor fusion
  • A blueprint for robotics manipulation that emphasizes joint angles and gripper cameras
  • A blueprint for computer vision that shows side-by-side comparisons of different models

Dynamic Viewer configuration dynamic-viewer-configuration

Generate blueprints programmatically based on runtime conditions. For instance, automatically create one view per detected anomaly, or adjust the layout based on how many data sources are active.

Blueprint architecture blueprint-architecture

Under the hood, blueprints are just data. They are structured using the same Entity Component System as your recordings, but with blueprint-specific archetypes and a separate blueprint timeline. This architecture provides several advantages:

  • Anything you modify in the Viewer can be saved and shared as a blueprint file
  • Blueprints can be produced programmatically using just the Rerun SDK without depending on the Viewer
  • Blueprint data is fully expressive, enabling blueprint overrides that are as powerful as logged data
  • The full time-series nature simplifies future features like snapshots and undo/redo
  • Debugging tools for Rerun data can inspect blueprint state just like recording data

Viewer operation viewer-operation

The Viewer is designed to be deterministic. Every frame, the Viewer:

  1. Takes the active blueprint and active recording
  2. Queries container and view archetypes from the blueprint at the current blueprint timeline revision
  3. Uses those view specifications to query the data needed from the recording
  4. Renders the results
  5. Queues any user interactions as new blueprint events on the blueprint timeline

This means the Viewer output is a deterministic function of the blueprint and the recording, with minimal persisted state between frames.

Next steps next-steps
