Dicom MRI

Visualize a DICOM MRI scan with the tensor slicing tools and a raymarched 3D volume.

Used Rerun types

Tensor, Volume3D, TextDocument

Background

Digital Imaging and Communications in Medicine (DICOM) serves as a technical standard for the digital storage and transmission of medical images. In this instance, an MRI scan is visualized using Rerun.

Logging and visualizing with Rerun

The sliceable tensor and raymarched volume use the same logged Volume3D:values component.

voxels_volume, ijk_to_xyz = extract_voxel_data(dicom_files)
voxels_volume_f16 = voxels_volume.T.astype(np.float16)
values = rr.TensorData(array=voxels_volume_f16, dim_names=["up", "back", "right"])
rr.log(
    "volume",
    rr.Transform3D(translation=ijk_to_xyz[:3, 3], mat3x3=ijk_to_xyz[:3, :3]),
    static=True,
)
rr.log("volume", rr.Volume3D(values, optical_density=0.5))

The voxel data is transposed to the [z, y, x] order expected by Volume3D, cast to float16, and logged once to the volume entity without any further normalization. The Tensor view maps Volume3D:values to the Tensor visualizer's Tensor:data component. Both visualizers therefore read the same stored tensor data.

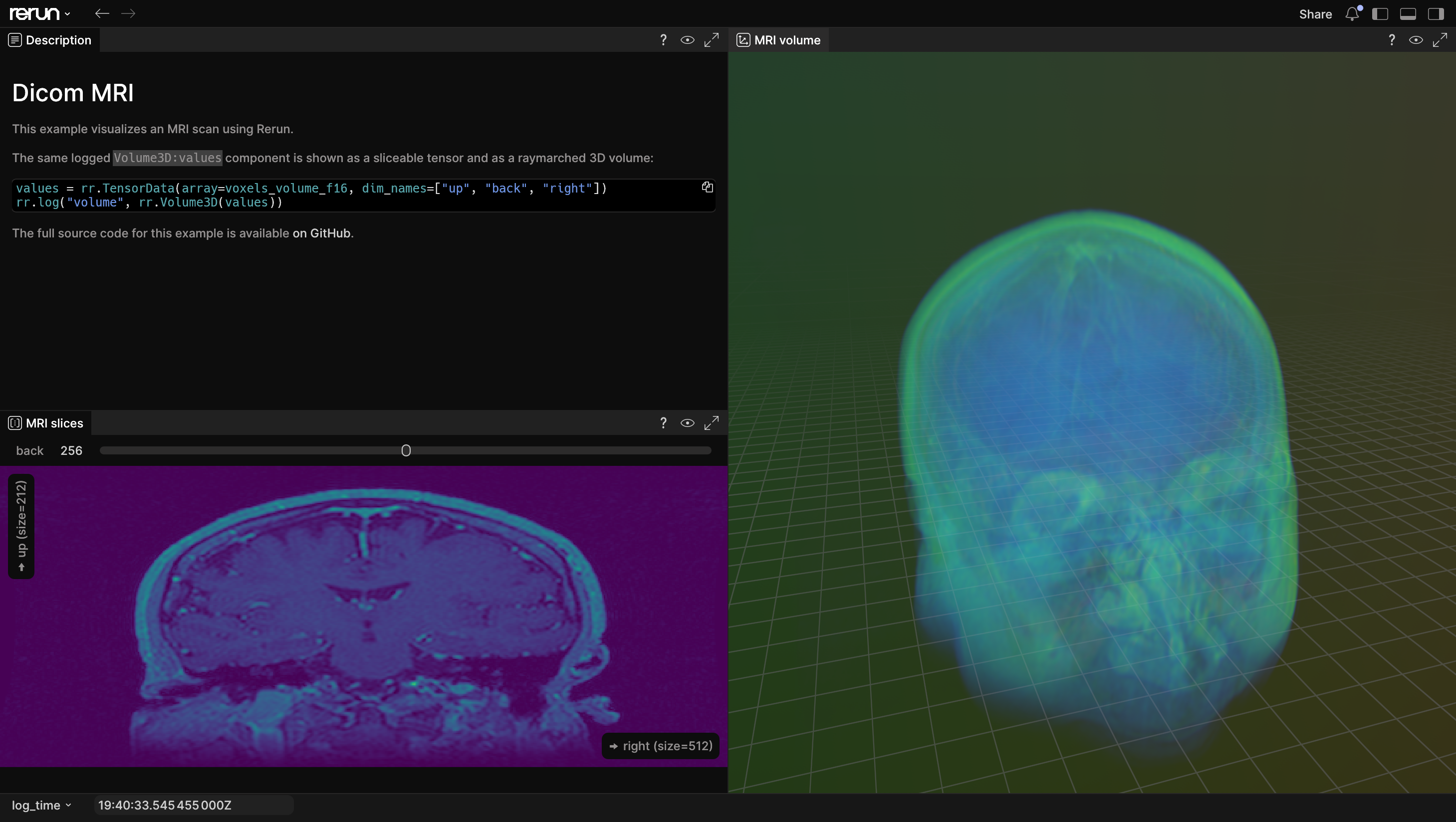

The blueprint arranges the description and sliceable tensor vertically on the left, with the 3D volume on the right. It configures the component mapping as a per-entity override in the Tensor view:

import rerun as rr
import rerun.blueprint as rrb
from rerun.blueprint.encodings import ComponentSourceKind, VisualizerComponentMapping

tensor_visualizer = rr.Tensor.from_fields().visualizer(
    mappings=[
        VisualizerComponentMapping(
            target="Tensor:data",
            source_kind=ComponentSourceKind.SourceComponent,
            source_component="Volume3D:values",
        )
    ]
)
rr.send_blueprint(
    rrb.Horizontal(
        rrb.Vertical(
            rrb.TextDocumentView(name="Description", origin="/description"),
            rrb.TensorView(
                name="MRI slices",
                overrides={"/volume": tensor_visualizer},
            ),
        ),
        rrb.Spatial3DView(name="MRI volume"),
    )
)

Horizontal and Vertical control the view layout, while the description view's origin selects the /description entity containing the logged Markdown. source_component selects the logged volume values, while target identifies the input expected by the Tensor visualizer. SourceComponent tells the visualizer to read that component from the entity being visualized. The overrides entry applies this visualizer configuration to /volume only in the Tensor view; the 3D view renders the same entity as a volume. Both visualizers infer their value ranges from the voxel data.

In the Rerun Viewer you can also inspect the data in detail. The dim_names provided when constructing TensorData give semantic meaning to each axis. After selecting the tensor view, you can adjust various settings in the Blueprint settings on the right-hand side. For example, you can adjust the color map, the brightness, which dimensions to show as an image and which to select from, and more.

Run the code

To run this example, make sure you have the Rerun repository checked out and the latest SDK installed:

pip install --upgrade rerun-sdk  # install the latest Rerun SDK
git clone git@github.com:rerun-io/rerun.git  # Clone the repository
cd rerun
git checkout latest  # Check out the commit matching the latest SDK release

Install the necessary libraries specified in the requirements file:

pip install -e examples/python/dicom_mri

To experiment with the provided example, simply execute the main Python script:

python -m dicom_mri # run the example

If you wish to customize it, explore additional features, or save it, use the CLI with the --help option for guidance:

python -m dicom_mri --help
